Smart Electronic Pressure, Level and Vacuum Transmitter - Terminal Head Version

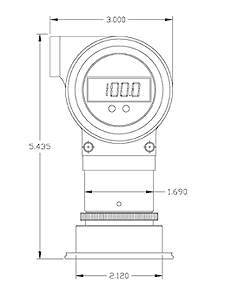

PMC-SMT/EL-SAN-TH As shown in photo with display
PMC-SMT/EL-DR-TH (Double O-Ring Process Connection)
- Ranges:
0 to 5" WC through 0 to 300 PSIG
+/- 5" WC through +/- 400" WC Compound
0 to 3" Hg through 0 to 30" Hg Vacuum (negative)
0 to 15 PSIA through 0 to 150 PSIA - Small sensing area – 1½"
- Fits 3" diameter or larger pipes
- Field programmable with Hart Communicator
- Terminal Head/Anodized and Powder coated, NEMA-4X Standards
- EMI/RFI protected
- LCD display optional
PMC Smart Electronic Pressure Transmitters accurately measure pressure of heavy slurries, liquids, and vapors. The ceramic capacitance sensor handles overloads of up to 10 times nominal range. The HART® protocol Rev. 5.1 allows easy access to the configuration, test, and detailed set-up of the transmitter. Ranges: 4.25" W. C. to 300 PSI
