Depth & Level - North America

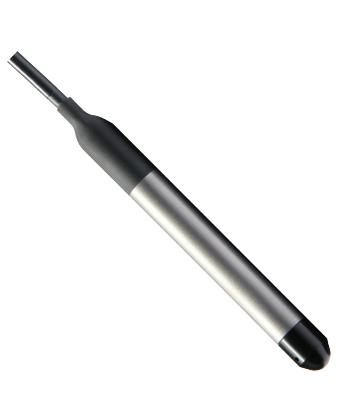

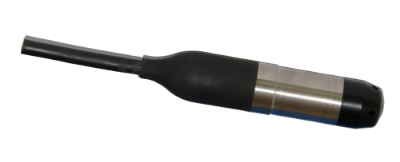

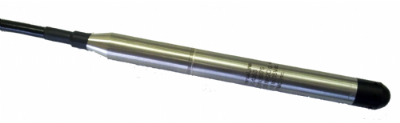

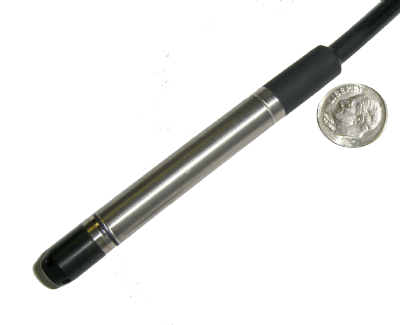

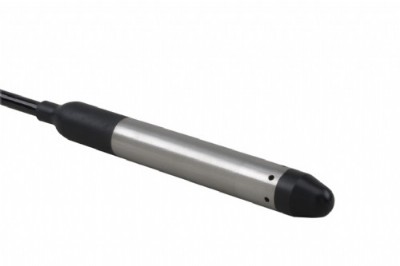

PMC VersaLine® Series submersible transmitters are specifically designed for depth and level measurements of groundwater and wastewater. Typical applications are wells, dams, irrigation, sewage lift stations, rivers and oceanography. Available in 3/8", 3/4" and 1" diameter configurations, the titanium construction is ideal in brackish, sea water, or other chemical environments unsuitable for stainless steel. By molding the standard polyurethane vented cable to the transmitter body, PMC provides the highest integrity waterproof assembly in the market which is well proven in thousands of installations worldwide. Among the outstanding features of the VersaLine Series are full scale range capabilities as low as 10” WC and an accuracy of ± 0.1%

Downloads

• Download our Submersible Depth and Level Transmitter and Accessories Overview »
• Download our White Paper Sewage Lift Stations: Reducing Maintenance costs with Level Transmitters
• Download our White Paper Hydrostatic Water Level - Measurement & Control

View Applications For:

• Ground Water
• Top-Side Well Applications
• Surface and Run-Off Water
• Process Plant Water Run-Off Monitoring
• Landfill and Remediation
• Sewage Lift Stations – Ceramic Clog-Free
• Dams and Rivers
• Hydroelectric
• Tank Level Measurement - Chemicals
• Irrigation
• Shipboard Ballast Tanks
• Oceanographic Mapping
• Tsunami Early Warning Systems
• Water Level Data-Logging
