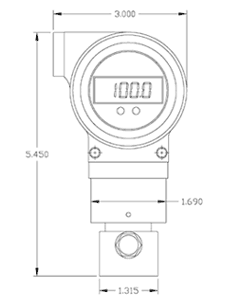

Smart Miniature Electronic Pressure Transmitter - Terminal Head Version
PMC-SMT-MIN-PT/EL-SAN-TH
PMC-SMT-MIN-PT/EL-TH (O Ring Process Connection)
- Ranges:
0 to 10" WC through 0 to 300 PSIG
+/- 10" WC through +/- 400" WC Compound
0 to 3" Hg through 0 to 30" Hg Vacuum (negative)
0 to 30 PSIA through 0 to 150 PSIA - Small sensing area – 1"
- Retrofits 1" pneumatic transmitter nipple
- Fits 2" diameter or larger pipes
- Terminal Head/Anodized and Powder coated, NEMA-4X Standards
- EMI/RFI protected
- LCD display optional
PMC Smart Miniature Electronic Pressure Transmitters accurately measure pressure of heavy slurries, liquids, and vapors. The ceramic capacitance sensor handles overloads of up to 10 times nominal range. The HART® protocol Rev. 5.1 allows easy access to the configuration, test, and detailed set-up of the transmitter.
