Smart Miniature Electronic Pressure Transmitter - Cable Version
PMC-SMT-MIN-PT/EL-SAN-CV/P
PMC-SMT-MIN-PT/EL-CV/P (O Ring Process Connection)

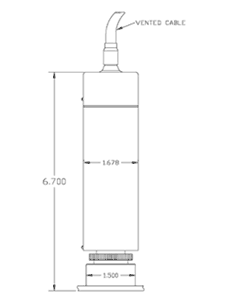

As shown in photo
- Ranges:
0 to 10" WC through 0 to 300 PSIG
+/- 10" WC through +/- 400" WC Compound
0 to 3" Hg through 0 to 30" Hg Vacuum (negative)
0 to 30 PSIA through 0 to 150 PSIA - Small sensing area – 1"
- Retrofits 1" pneumatic transmitter nipple
- Fits 2" diameter or larger pipes
- 4-20 mA, 2 wire output
- 316L S/S housing with 10' cable, NEMA-4X Standards
- EMI/RFI protected
PMC Smart Miniature Electronic Pressure Transmitters accurately measure pressure of heavy slurries, liquids, and vapors. The ceramic capacitance sensor handles overloads of up to 10 times nominal range. The HART® protocol Rev. 5.1 allows easy access to the configuration, test, and detailed set-up of the transmitter.
