KP19S Series / KA Sensors

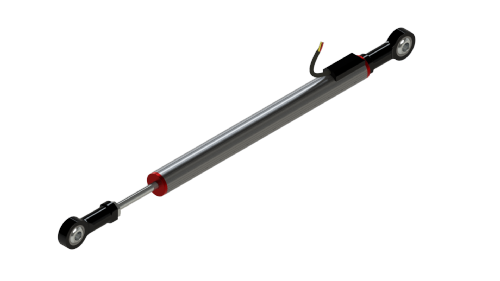

The KP19S Standard Series of linear position sensors have a 0.75 in. diameter aluminum body and a stainless steel shaft.  Designed to withstand the demanding environment using a proven conductive plastic track technology and multi fingered contacts the sensors offer high performance and reliability even under extreme temperature and vibration.  Can be specified with a standard IP65 sealing rating or upgrade to a full IP67 version.  Cable exit can be either forward or reverse.

Specifications

  • Range 1" to 18"
  • 0.75″ Diameter
  • ±0.5% Linearity
  • IP65 or IP67
  • Note: There is no Compact Version of the KP19S

 With Carbon Sleeve

Typical Application Include:

Damper Position - Throttle - Pedal - Aero Surface - Actuators
