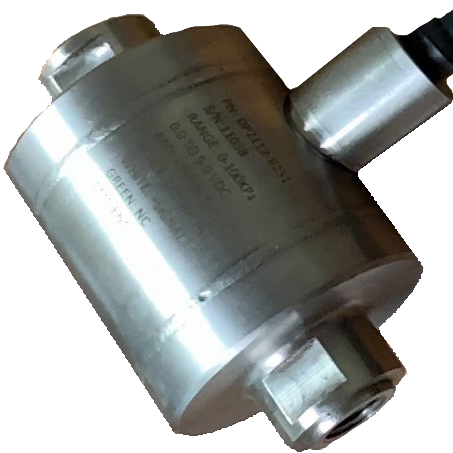

Differential Pressure Transmitter DP2000 Series

Differential Pressure Transmitter DP2000 Series

The PMC DP2000 Series Precision Pressure Transmitter is a high-performance, rugged general purpose transmitter, suitable for a wide range of applications. Of particular importance to the test and measurement industry is the hi-line and proof pressure capability, 1000 psi for all ranges, thus avoiding damage, where pressure spikes and unknown pressure surges can often occur.

Since differential pressure is often a complicated measurement, we encourage users to contact our knowledgeable sensor engineers at PMC Engineering.



Specifications

Specifications

  • Full-Scale Ranges: 0-1, 5, 10, 15, 30, 50, 100, 150, 250, 500, 600 psid

other ranges available

  • Accuracy: ±0.1% (standard - better possible, contact PMC)

Non-linearity, hysteresis, repeatability, zero & span settings

  • Electrical: 0.5 - 4.5 VDC output/4-20 mA
  • Operating Temperature Range: -40 to 250°F

Typical Applications

Test & measurement - Wellhead - Industrial Flow - Pump Monitoring - Flight Test - Health Monitoring
