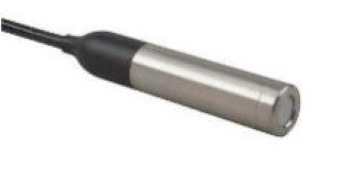

Wastewater Level Transmitter (VL2000)

Wastewater Level Transmitter (VL2000)

                                                                                                                     VL2000 with SW2000 Sink Weight



The PMC VersaLine® VL2000 Series submersible level transmitters are specifically designed for use in wastewater, pump/lift station applications. The ceramic sensing element provides a rugged flush open face design which avoids clogging or sludge build up from the materials often encountered in wastewater. The stainless steel construction will satisfy most applications, but an option of Titanium is available where the chemical environments dictate. The standard polyurethane vented cable is molded to the transmitter providing the highest integrity waterproof assembly well proven in thousands of installations worldwide. FEP cable is available as an alternate for harsh environments. A feature of the VL2000 Series is full scale ranges as low as 10” WC.



 For Zero Maintenance: In order to reduce on site maintenance PMC has developed the  MP 11 Moisture Protection Reference Volume. For vented gauge transmitters this provides a total isolation to the atmosphere by using a custom bladder while maintaining the high performance of the transmitter. This changes volume with Barometric pressure. Totally maintenance free. Please specify MP 11.

VersaLine VL2000 Series Wastewater Level Transmitter

  • Ranges: Full Scale (Zero based)
    0-10, 20, 30, 50” WC
    0-1, 5, 10, 15, 30, 50, 100, 150 psig
    Other ranges and pressure units can be specified.

  • ±0.1%, ±0.25% Accuracies
  • All welded 316L SS or Titanium
  • 4-20 mA, 2 wire output
  • Molded polyurethane

Applications:
