Miniature Precision Pressure Transmitter - ATM.mini

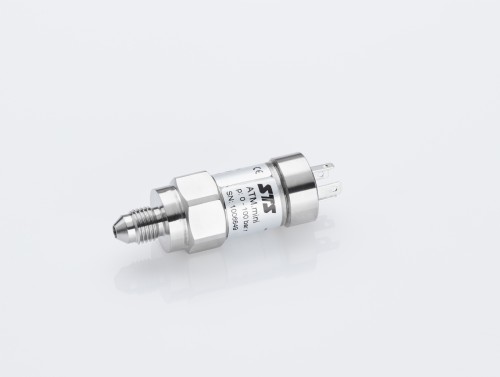

Miniature Precision Pressure Transmitter ATM.mini

 New Pressure Sensor for Test Applications - ATM.mini

The ATM.mini pressure transmitter is a high performance pressure transmitter suitable for use in rugged, high vibration environments from -40 to +255ºF. The ATM.Mini provides a 2-wire, 4-20 mA or 0.5 - 4.5 VDC analog output within a lightweight housing of 0.69" diameter. With a total error band of only 1.2%FS in a temperature range of -40 to 255°F the ATM.mini can cover a large area of test applications.



  • 0.69" diameter
  • Max Compensated temperature: -40 to 250ºF
  • Full Scale ranges from 0 - 15  to 0 - 1500 psi
  • Gauge, absolute or sealed gauge
  • Accuracies of  <0.05% or 0.1%
  • Long term stability typically <0.1% FS/year
  • Response time typically <1ms/10...90% FS
  • Output: 4-20 mA or 0.5 to 4.5 VDC
