KG Series

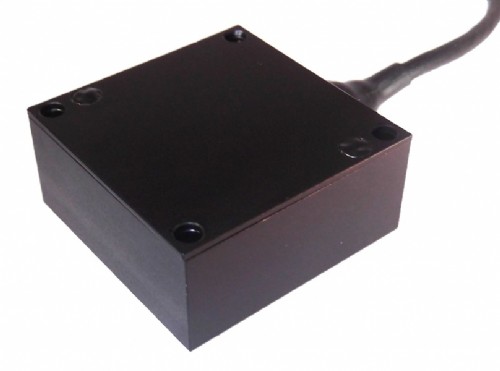

The KG Series of angular rate sensor offers a compact and rugged solution for the motor sports and automotive testing industries. The sensors offer 1, 2 or 3 axis of measurement with integral signal conditioning to give a standard signal of 0.5 to 4.5V which is ideal for most data acquisition systems. Supply voltage can be 5V or 8-16V and low current consumption of less than 25mA. With a bandwidth of zero to 1500Hz these sensors are useful for applications within component and full vehicle testing and development programs.

Specifications

  • Miniature Size
  • ±80°/S or ±200/S
  • <±1.0% FS Linearity
  • 1, 2 or 3 Axis
  • DC Response
  • Built-in Amplifier

Typical applications include:

Vehicle Dynamics - Cornering - Slip - Yaw Rate - Pitch and Roll
