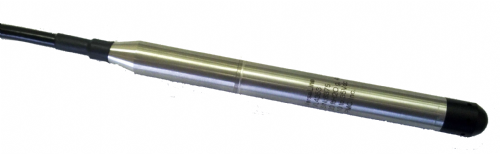

Submersible Level Transmitter (VL4313)

Submersible Level Transmitter (VL4313)

The PMC VersaLine® VL4313 Series is a State-of-the-Art Submersible Level Transmitter that  combines innovative sensing technology with proven manufacturing techniques. The current design is based on more than 30 years experience in providing reliable submersible pressure transmitters for water related applications. The product has an anticipated reliability (MTBF) of more than 12 years. In support of this the design is rich in features many of which are shown on the datasheet

For Zero Maintenance: In order to reduce on site maintenance PMC has developed the  MP 11 Moisture Protection Reference Volume. For vented gauge transmitters this provides a total isolation to the atmosphere by using a custom bladder while maintaining the high performance of the transmitter. This changes volume with Barometric pressure. Totally maintenance free. Please specify MP 11.

VersaLine VL4313 Series Submersible Level Transmitter

  • Ranges: Full Scale (Zero Based)

    0-5, 15, 30, 50, 100, 150, 200, 300 psig
    0-50, 100, 150, 200, 300, 500, 1000, 2000 & 3000 psisg.

    Other ranges and pressure units can be specified.

  • ±0.25%FS (BSL)
  • 0.69" diameter
  • 4-20mA, 10-35 VDC
  • Fully Potted
Applications:
