Smart Electronic Pressure, Level and Vacuum Transmitter - Cable Version

Smart Electronic Pressure, Level and Vacuum Transmitter - Cable Version

PMC Smart Electronic Pressure Transmitters accurately measure pressure of heavy slurries, liquids, and vapors. The ceramic capacitance sensor handles overloads of up to 10 times nominal range. The HART® protocol allows easy access to the configuration, test, and detailed set-up of the transmitter.

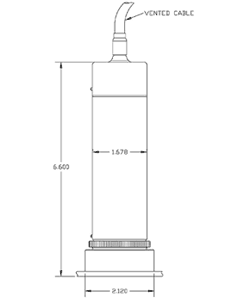

PMC-SMT/EL-SAN-CV/P  As shown in photo

PMC-SMT/EL-DR-CV/P (Double O-Ring Process Connection)

  • Ranges:
    0 to 5" WC through 0 to 300 PSIG
    +/- 5" WC through +/- 400" WC Compound
    0 to 3" Hg through 0 to 30" Hg Vacuum (negative)
    0 to 15 PSIA through 0 to 150 PSIA
  • Small sensing area – 1½"
  • Fits 3" diameter or larger pipes
  • Field programmable with Hart Communicator
  • 316L S/S housing with 10' cable, NEMA-4X Standards
  • EMI/RFI protected
  • LCD display optional
