SDI-12 Depth and Level Transmitter (VL3004)

SDI-12 Depth and Level Transmitter (VL3004)

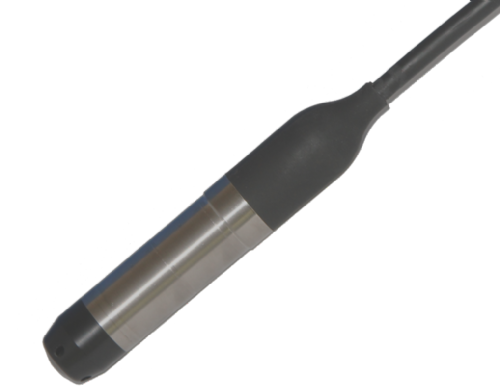

The PMC VersaLine® VL3004 Series features the SDI-12 protocol. These submersible transmitters are specifically designed for depth and level measurements of groundwater and sea water. Typical applications would be in rivers, wells, dams, irrigation and oceanography. The stainless steel construction will satisfy many applications and the titanium housing is ideal in brackish or sea water or other chemical environments unsuitable for stainless steel. The standard polyurethane vented cable is molded to the transmitter providing the highest integrity waterproof assembly well proven in thousands of installations worldwide. Kevlar is used to avoid any cable elongation when longer lengths up to 5000 feet are required for deep wells.

For Zero Maintenance: In order to reduce on site maintenance PMC has developed the  MP 11 Moisture Protection Reference Volume. For vented gauge transmitters this provides a total isolation to the atmosphere by using a custom bladder while maintaining the high performance of the transmitter. This changes volume with Barometric pressure. Totally maintenance free. Please specify MP 11.

VersaLine VL3004 Series Depth and Level Pressure Transmitter

  • Ranges: Full Scale (Zero based)
    0-20, 50, 100”WC
    0-1, 5, 10, 15, 30, 50, 100, 150, 300, 700 psig
    0-30, 50, 100, 150, 300, 500, 700 psia
    Other ranges and pressure units can be specified.
  • SDI-12 v1.3 Protocol
  • Total Accuracy ±0.1%
  • Level and Temperature output
  • Molded polyurethane cable
