Remote

Remote

  • Extremely wet application
  • High vibration locations
  • High temperatures
  • Difficult locations

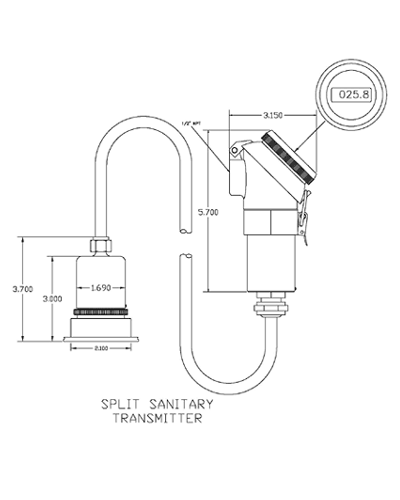

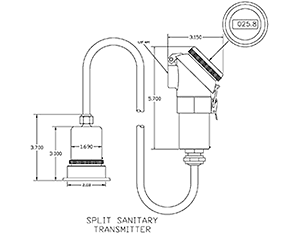

Click to enlarge

Remote Electronics Benefits:

  • Extreme Wet Application: Electronics are located away from heavy maintenance area
  • High Vibration Locations: Components are protected from shock
  • High Temperature: Limits output variations and potential damage to electronics caused by excessive heat that only the sensor can handle
  • Difficult Locations: Enables calibration and range adjustments without removing sensor from the process or exposing personnel to hazardous and dangerous locations

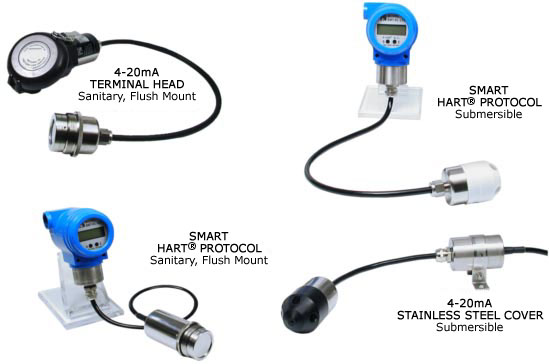

PMC’s Remote Electronic Pressure, Level and Vacuum Transmitters provide reliable and precise results combined with durability. Focusing on the separation of the electronics from the sensor, we are able to provide many solutions to difficult applications, such as high vibration locations, very wet and high condensation areas, and excessive temperatures. The electronics are located away from the process connection enabling calibration and range adjustments without exposing personnel to sensitive, hazardous, or extreme conditions. Electronic components are protected from shock and vibration which prevents interference or false readings. The split sensor also limits the output variations and potential damage to the electronics caused by excessive heat that only the sensor can handle. Remote option can be applied to all PMC electronic transmitters.
