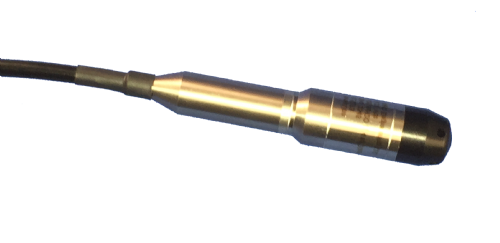

Depth and Level Transmitter-High Temperature (VL5270)

Depth and Level Transmitter-High Temperature (VL5270)

The PMC VersaLine® VL5000 Series submersible transmitters are designed for depth and level measurements of ground, surface, waste and sea water. Suitable for small size bore holes, wells, dams, irrigation, sewage lift stations, rivers and oceanography. The VL5270 has been specifically developed for long term monitoring in wells and other applications where temperatures may be as high as 250°F. This is achieved by the use of a special FEP cable and assembly process.

For Zero Maintenance: In order to reduce on site maintenance PMC has developed the  MP 11 Moisture Protection Reference Volume. For vented gauge transmitters this provides a total isolation to the atmosphere by using a custom bladder while maintaining the high performance of the transmitter. This changes volume with Barometric pressure. Totally maintenance free. Please specify MP 11.

VersaLine VL5270 Series Depth and Level Transmitter

  • Ranges: Full Scale (Zero based)

               0-30, 50"WC

               0-1, 5, 10, 15, 30, 50, 100, 150, 300 psig, and 500, 1000 psisg

                  0-50, 100, 150, 200, 300 psia

                  Other ranges or engineering units can be specified.

  • 0.1% Accuracy
  • 0-5VDC or 4-20mA
  • 250°F continuous
  • 1" diameter Titanium housing
