Depth and Level Transmitter-High Accuracy (VL5000)

Depth and Level Transmitter-High Accuracy (VL5000)

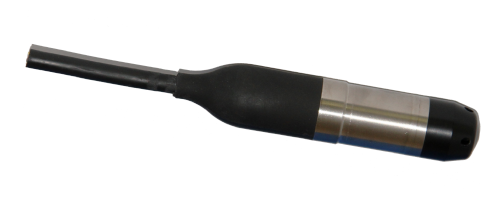

The PMC VersaLine® VL5000 Series submersible transmitters are designed for depth and level measurements of ground, surface, waste, and sea water. Suitable for small size bore holes, wells, dams, irrigation, sewage lift stations, rivers and oceanography.  The VL5000 has been specifically developed for long term monitoring in wells and other applications where high performance is important.  Accuracies of better than 0.05% are available. The Titanium housing provides immunity to virtually all environments, especially including brackish or sea water, or other chemicals unsuitable for stainless steel. The FEP vented cable is attached to the transmitter providing the highest integrity waterproof assembly, proven in thousands of installations worldwide. Kevlar is used to avoid cable elongation with a breaking point in access of 200lbs.

For Zero Maintenance: In order to reduce on site maintenance PMC has developed the  MP 11 Moisture Protection Reference Volume. For vented gauge transmitters this provides a total isolation to the atmosphere by using a custom bladder while maintaining the high performance of the transmitter. This changes volume with Barometric pressure. Totally maintenance free. Please specify MP 11.

VersaLine VL5000 Series Depth and Level Transmitter

  • Ranges: Full Scale (Zero Based)

          0-20, 30, 50" WC

          0-1, 5, 10,15, 30, 50, 100, 150, 300 psig, and 500, 1000 psisg

          0-50, 100, 150, 200, 300, psia

          Other ranges or engineering units can be specified.

  • 0.05% Accuracy
  • 0-5 VDC or 4-20mA
  • Lightning Protection
  • 1" diameter Titanium housing
Applications:
